THE NAME:
t8 15w Microwave Radar motion sensor led tube PLANAR ANTENNA
Model: t8 15w Microwave Radar motion sensor led
Categories: LED Tube » Microwave Sensor LED Tube »
Place of Origin: GuangDong, China
Brand Name: Neway
Contact NowClick here to send inquiry
Description:
t8 15w Microwave Radar motion sensor led tube PLANAR ANTENNA PicturesWe are professional t8 15w Microwave Radar motion sensor led tube PLANAR ANTENNA manufacturers and suppliers in China. If you want to know more t8 15w Microwave Radar motion sensor led tube PLANAR ANTENNA, or interested in our t8 15w Microwave Radar motion sensor led tube PLANAR ANTENNA, please free to contact us. Sale, wholesale, retail sellers top grade, high quality, reasonable or cheap price t8 15w Microwave Radar motion sensor led tube PLANAR ANTENNA which is popular for contemporary architectural luminaires on the world markets, especial for Australia, New Zealand, Thailand, Indonesia, Malaysia, Philippines, Singapore, Vietnam, UAE, Sandi Arabia, South Africa, Poland, Sweden, Spain, Greece, Italy, Russia, Netherland, Danmark, Belgium, USA United States, Canada, Braizil, Maxico, UK United Kingdom countries etc.
t8 15w Microwave Radar motion sensor led tube PLANAR ANTENNA Specifications
01) Brand: NEWAY
02) Country of Origin: Dongguan, China
03) Product code, Power, Structure Sizes, Light source, Luminous Flux
*NW-LED-T8MICADD9-2-15W, 15W, Φ28*900mm, LED, 1400-1700Lm
04) Microwave Sensor Function Description:
04.1 Core Detector: Singapore Agilsense Doppler Microwave Mobile Sensors
04.2 Sensing Distance: Straight-line 7~9 Meters, Height 9~12 Meters (our end cap can be rotated 180 degree, it is more easy to install different location to detect objective)
04.3 Sensing Angle: 360°
04.4 Speed of Response: 0.15 seconds
04.5 Full Brightness Power: 15W
04.6 Micro-bright Dormant Power: Adjustable(See below)
04.7 Lighting Delay Time: Adjustable(See below)
*. With adjustable delay shut off time and power saving adjustment.

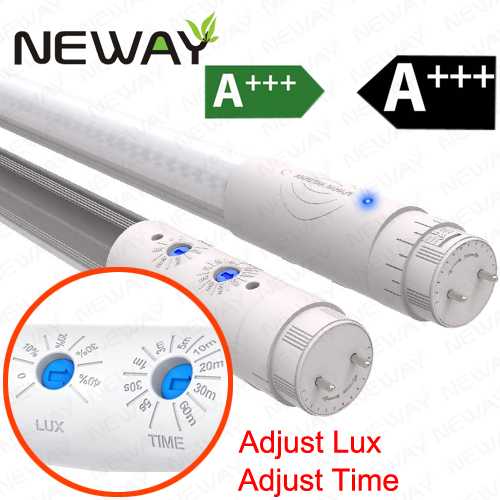

04.7.1) Two Adjuster: one for delaying TIME, other for LUX, no need to change Control Board, no need to change the software to avoid error from software,production, clients also can change it by themself in the future by manual rotation.
04.7.2) Our delaying time is with 9 levels (from 5 seconds to 60 miniutes), but the max of normal sensor tube is 2 miniutes, it is limit
04.7.3) Adjustable TIME: When user is away from detection zone, light tube will stay on based on the set time. (5S,30S, 1M, 3M, 5M, 10M, 20M, 30M, 60M).
04.7.4) Adjustable LUX: When user is away from detection zone, the power consumption of the tube will be reduced tothe set amount. (0%-OFF, 10%, 20%, 30%, 40%).
05) Lamp base: T8 G13
06) CCT(Option): 3000K, 4000K, 5000K, 6000K
07) CRI: 80Ra+
08) Input Voltage: AC100-240V( or 277V), DC24V, *.Custom Other Voltage
09) Voltage input wiring connection type: Double-end(Two end input) connection
10) Power Factor(PF): ≥0.9
11) Power Conversion Efficiency: ≥88%
12) IP Level: IP50
13) Lampshade color: Milky cover(Default), Clear cover
14) Beam Angle: 180°
15) Lifespan: ≥ 50,000 hours
16) Emergency Lighting: No *.Custom Made LED Emergency Lights with Lighting Time 1.5 Hours, 2 Hours, 2.5 Hours or 3 Hours
17) Warranty: 3 Years
>>> Adjustable TIME & LUX - Microwave Sensor LED Tube:
Through independent R&D we developed our own passive Microwave sensor utilizing Singapore Agilsense Doppler Microwave Mobile Sensors,and Ultra precision core controller unit.This internal Microwave sensor has time delayed action,anti-interference,and more accurate sensing capability.
A) High anti-interference ability (Thunder, rain or smallanimals will not cause wrong operation)
B) Can achieve cluster-control function
C) Dimming function design, up to ≈90% energy saving.
D) Stable detection sensitivity.
E) Passed 3.75kV high-pot test.
1) TIME: When user is away from detection zone, light tube will stay on based on the set time. (5S,30S, 1M, 3M, 5M, 10M, 20M, 30M, 60M).
2) LUX: When user is away from detection zone, the power consumption of the tube will be reduced tothe set amount. (0%-OFF, 10%, 20%, 30%, 40%).
3) LED Tube'S end cap is rotatable 90o clockwise and counter clockwise. This can accurately position the tube to the direction of the sensing and lighting area.
4) Utilizing the Doppler principle, radar signal is emitted and received to intelligently detect the surrounding environment. If there is a moving object within the detection range the tube will be fully light. If there aren't any moving objects within the detection range the light will act according to the customer's adjustment settings.
5) Maximum sensing distance:upto 6-8 meters.
6) Widely used in Underground Parking Lot,Underground parking lot monitoring auxiliary lighting,Underground parking lot emergency lighting,Logistics storage center,Public toilet,Stairs aisle,Corridor,underpass,basement,warehouse etc.
7) Outstanding cost saving,For example"18W Sensor T8 Tube"( Remarks: "kWh" = kilowatt hour "s" = second "hrs" = hours):
Status 100% Brightness 20% Brightness
Sensor T8 Tube power (W): 18 ±1W 4.0 ±0.5W
Sensor T8 Tube operation time: 30s x 300 times / day = 9000s 24hrs x 3600s - 9000s = 77400s
Power consumption of sensor T8 Tube: 18W x 9000s/3600s = 0.04kWh 4W x 77400s/3600s = 0.086kWh
Power consumption of
Sensor T8 Tube per day: 0.04kWh + 0.086kWh = 0.13kWh Power consumption of common T8
Tube per year:
Power consumption of 0.96kWh x 365 = 350.4kWh
Common T8 Tube per day: 40W x 24hrs = 0.96kWh Up to ≈90% energy saving when
compared with common tube
t8 15w Microwave Radar motion sensor led tube PLANAR ANTENNA Global part Projects Case
t8 15w Microwave Radar motion sensor led tube PLANAR ANTENNA main applications in the places of replacement of tradtional fluoresent tubes, underground parking garages, cars parking lots, cars parking areas, airport energy-saving lighting transformation, government agencies building lighting project, factory lighting engineering, school energy-saving lighting engineering, hotel lighting transformation, hospital lighting energy saving reconstruction, marketplace lighting engineering modification should be whole day or full day at every day or 24 hours lighting of large lighting energy saving places such as area stairs, elevator swing, toilet, basement, hotel and office corridor corridor lamp, porch, warehouse, underground parking garage, underground aisle, subway lighting, and replacements of long time (24 hours) working traditional induction fluorescent tube.
